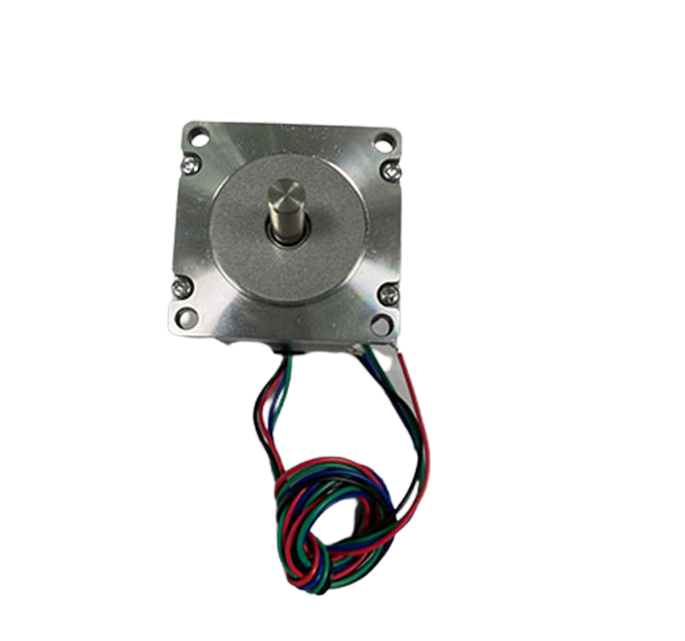

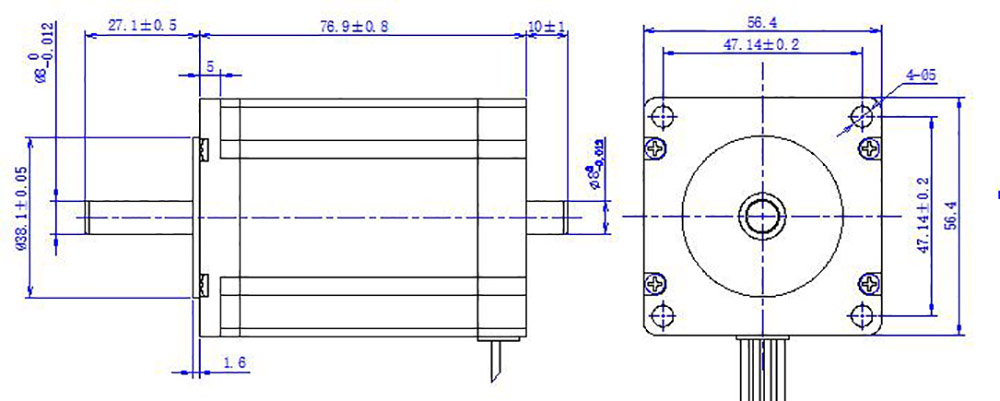

NEMA23C stepper motor is a standard hybrid stepper motor, with the size 56.4*56.4, a step angle is 0.9°.
| STEP ANGLE | 0.9°±5% |
| NO. OF PHASES | 2 |
| RATED VOLTAGE | 2.0 V |
| RATED CURRENT | 5.0 A |
| RESISTANCE | 0.4 ohm±0.1 AT 25° |
| INDUCTANCE | 1.7 mH±20% AT 1kHz, 1Vrms |
| HOLDING TORQUE | 1.6 N.m(226.2 oz.in)TYP. |
| RUNNING TORQUE(AT --PPS) | --V.DC, --A/PHASE |
| DIELECTRIC STRENGTH | 500V A.C/MIN. |
| INSULATION RESISTANCE | 100MΩ+/MIN. |
| INSULATION CLASS | CLASS B |
| TEMPERATURE RISE | 80K MAX. |
| ROTOR INERTIA | 480 g.cm²(2.64 oz.in²) |
| WEIGHT | APPROX. 1000g(35.0 oz) |
| ALLOWABLE THRUST LOAD | 15N |
| ALLOWABLE RADIAL LOAD | 75N(ON THE SHAFT END) |
| OPERATION AMBIENT TEMP. | ‘-20℃---+50℃ |
| OPERATION AMBIENT HUM. | 15%----90% |
| LIFE | 5000HOURS |

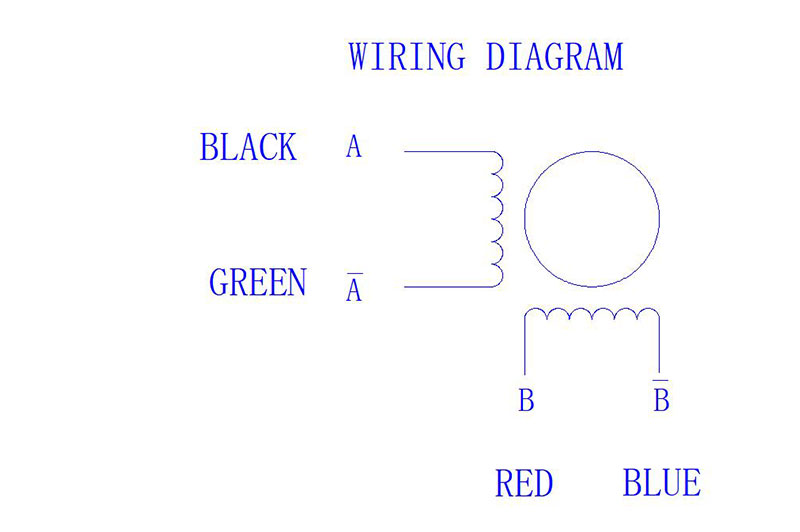

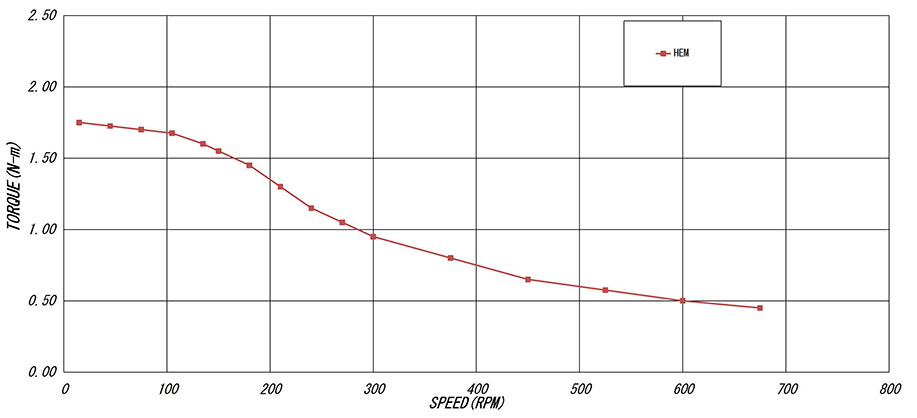

SPEED VS TORQUE CURVE
MODEL: HEM-23C6403
LOT NO.: 181013
| VOLTAGE | 24V.D.C | ○ | SUPPLY | WINDING | |
| CURRENT | 4A/PHASE | ○ | rms | AVE | |
| EXCITATION | Full step | ||||
| DRIVE CIRCUIT | UNIPOLAR | # | BIPOLAR | ||
| INERTIA LOAD | --g-cm2 |
