nema 32 (round) is a combination of 6 slots and 4 poles, which makes it suitable for higher voltage and speed applications.
| Rated voltage (VDC) | 24 |
| Rated power (W) | 60 |

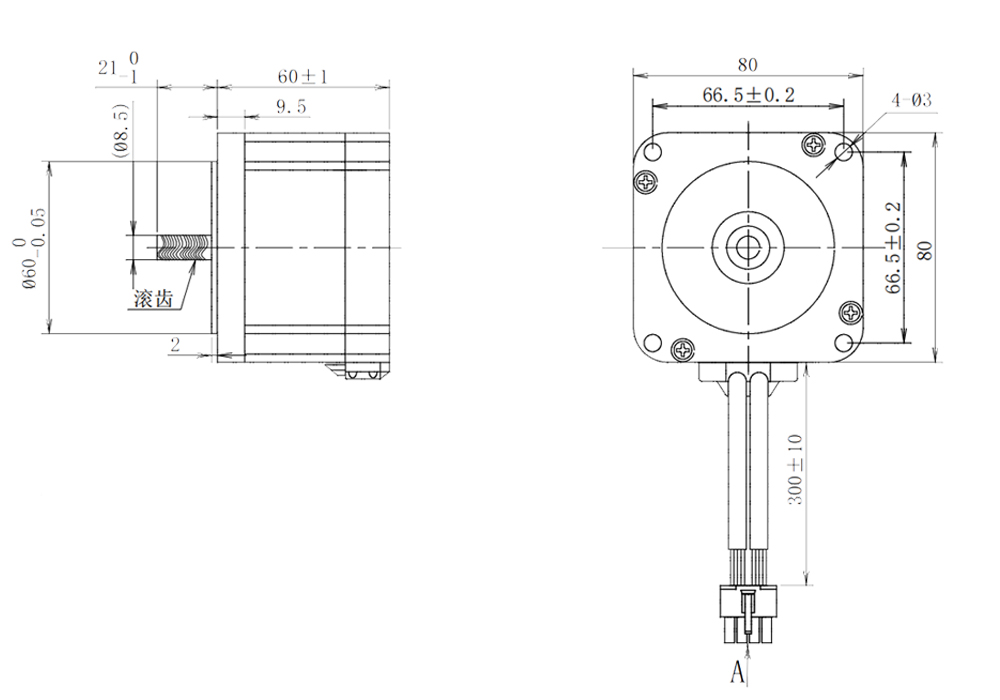

| Body length (mm) | 60 |
| Pole pairs | 2 |
| Rated torque (Nm) | 0.2 |
| Rated current (A) | 3.5 |
| Rated speed (RPM) | 1200 |
| No load speed (RPM) | 2600 |
| Mass (kg) | 1 |

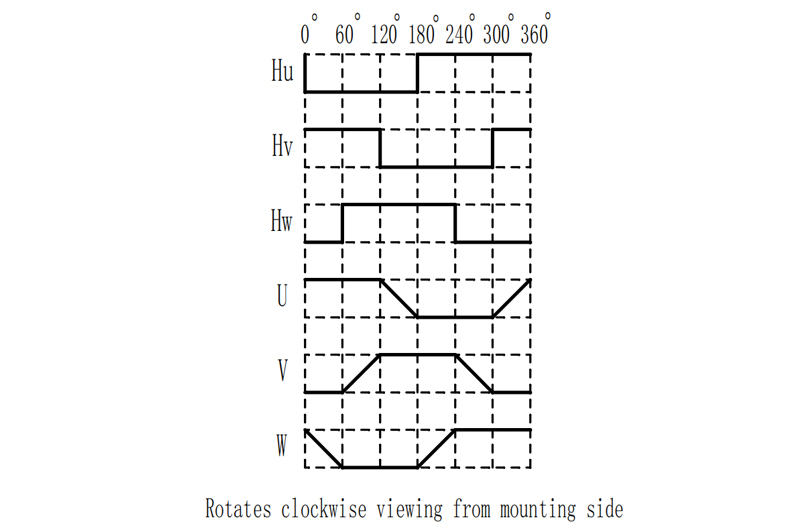

| Sensor | Hall |
| Working ambient (℃) | -20°~ +80° |
| Storage ambient (℃) | +5 ~ +35 |
| Working humidity (RH) | 15%-90% |
