Based on the market demand, HEMM developed the NEMA14R stepper motor, which is a round stepper motor.
The step angle is 0.9°.
| STEP ANGLE | 1.8°±5% |
| NO. OF PHASES | 2 |
| RATED VOLTAGE | 10 V |
| RATED CURRENT | 0.5 A |
| RESISTANCE | 20 ohm±10% AT 25° |
| INDUCTANCE | 17 mH±20% AT 1kHz, 1Vrms |
| HOLDING TORQUE | 0.125 N.m(17.6 oz.in)TYP. |
| RUNNING TORQUE(AT --PPS) | --V.DC, --A/PHASE |
| DIELECTRIC STRENGTH | 500V A.C/MIN. |
| INSULATION RESISTANCE | 100MΩ+/MIN. |
| INSULATION CLASS | CLASS B |
| TEMPERATURE RISE | 80K MAX. |
| ROTOR INERTIA | 14 g.cm²(0.08 oz.in²) |
| WEIGHT | APPROX. 160g(5.6 oz) |
| ALLOWABLE THRUST LOAD | 10N |
| ALLOWABLE RADIAL LOAD | 21N(ON THE SHAFT END) |
| OPERATION AMBIENT TEMP. | ‘-20℃---+50℃ |
| OPERATION AMBIENT HUM. | 15%----90% |
| LIFE | 5000HOURS |

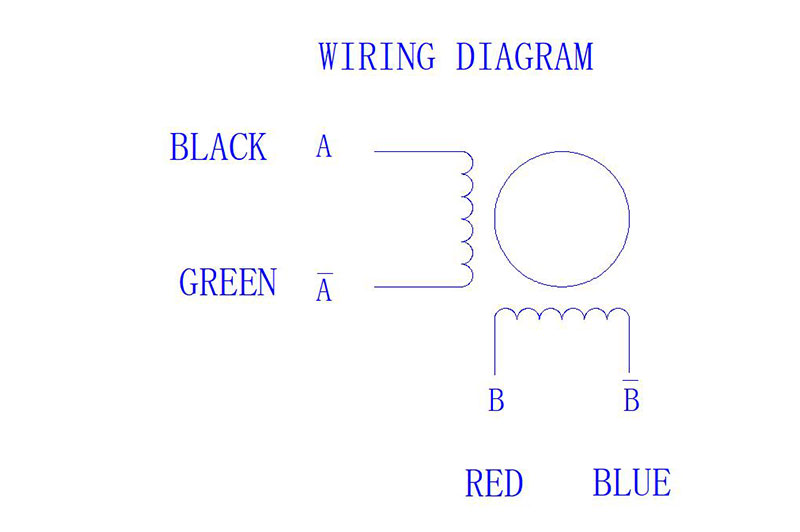

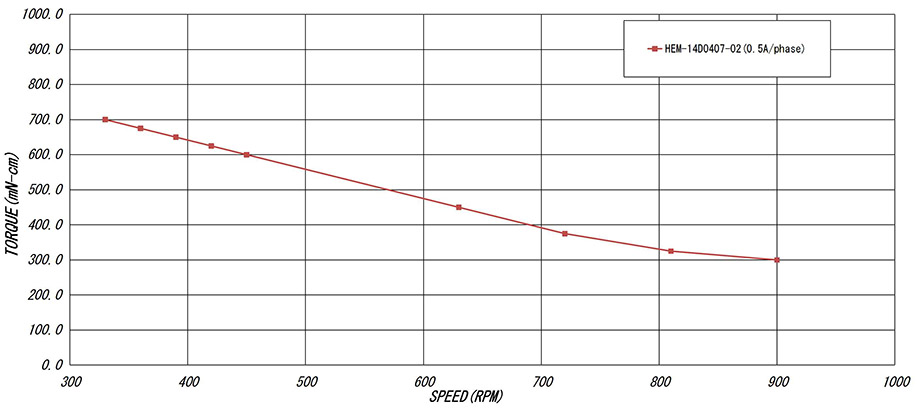

SPEED VS TORQUE CURVE
MODEL:HEM-14D0407
LOT NO.: 140917
| VOLTAGE | 24V.D.C | ○ | SUPPLY | WINDING | |
| CURRENT | ○ | PEAK | RMS | ||
| EXCITATION | Full step | ||||
| DRIVE CIRCUIT | HDSD258 | UNIPOLAR | # | BIPOLAR | |
| INERTIA LOAD | 3g-cm2 |
